Escape to the wilderness without leaving your favorite movies behind! Introducing HitchBox: the ultimate portable cinema for your car. Plug it in, project, and immerse yourself in outdoor movie magic!
Background
The project is meant to identify opportunity areas for new products and services, both physical and digital across a product's ecosystem. Shown below is an ecosystem map, outlining the vehicle interior space, vehicle exterior space, as well as what’s beyond the vehicle. The space Beyond the vehicle includes your digital ecosystem, your online customer touchpoints, community spaces you create on the internet, support and services, partners, and social events. And this was the space that Ford was lacking in, and they wanted to capture some of that market. So our team was tasked with designing products and services across this ecosystem.
This project sits somewhere here across connected services, smart accessories, and the outdoors.
This project sits somewhere here across connected services, smart accessories, and the outdoors.
Role
Industrial design, Interaction design, requirements gathering, UX
Tools used
Rhino, Grasshopper, Keyshot, Photoshop, XD, Adobe After Effects
Who is this for?
This is for adventure seekers and camping enthusiasts who crave unforgettable experiences. They're the ones who treasure shared moments with loved ones around a roaring campfire. Tailgating isn't just a pre-game ritual for them; it's an opportunity to create unforgettable memories. Always seeking new ways to entertain, they value the ability to bring their favorite movies, games, and music with them, even in the depths of the wilderness. With HitchBox, they effortlessly transform their hitch receiver into a hub of entertainment, elevating their outdoor escapades to new heights of enjoyment.
What MATTERS MOST
TO CUSTOMER?
Flexibility > performance
Transition experience > drive experience
Exterior accessories > interior accessories
Smart connected > rugged
Style > gear management
Comfort > efficiency
Epic > everyday
CUSTOMER PERSONA

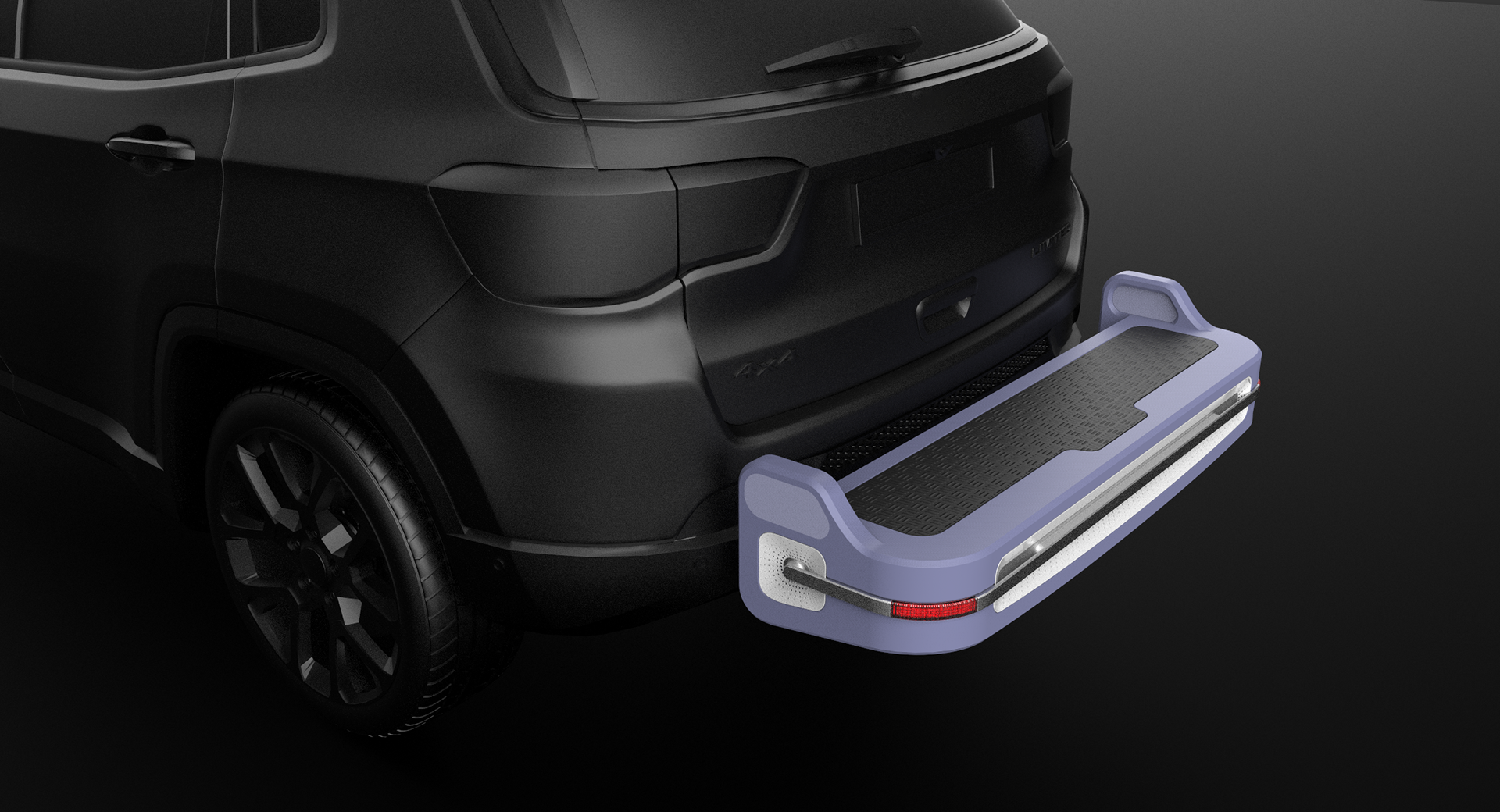

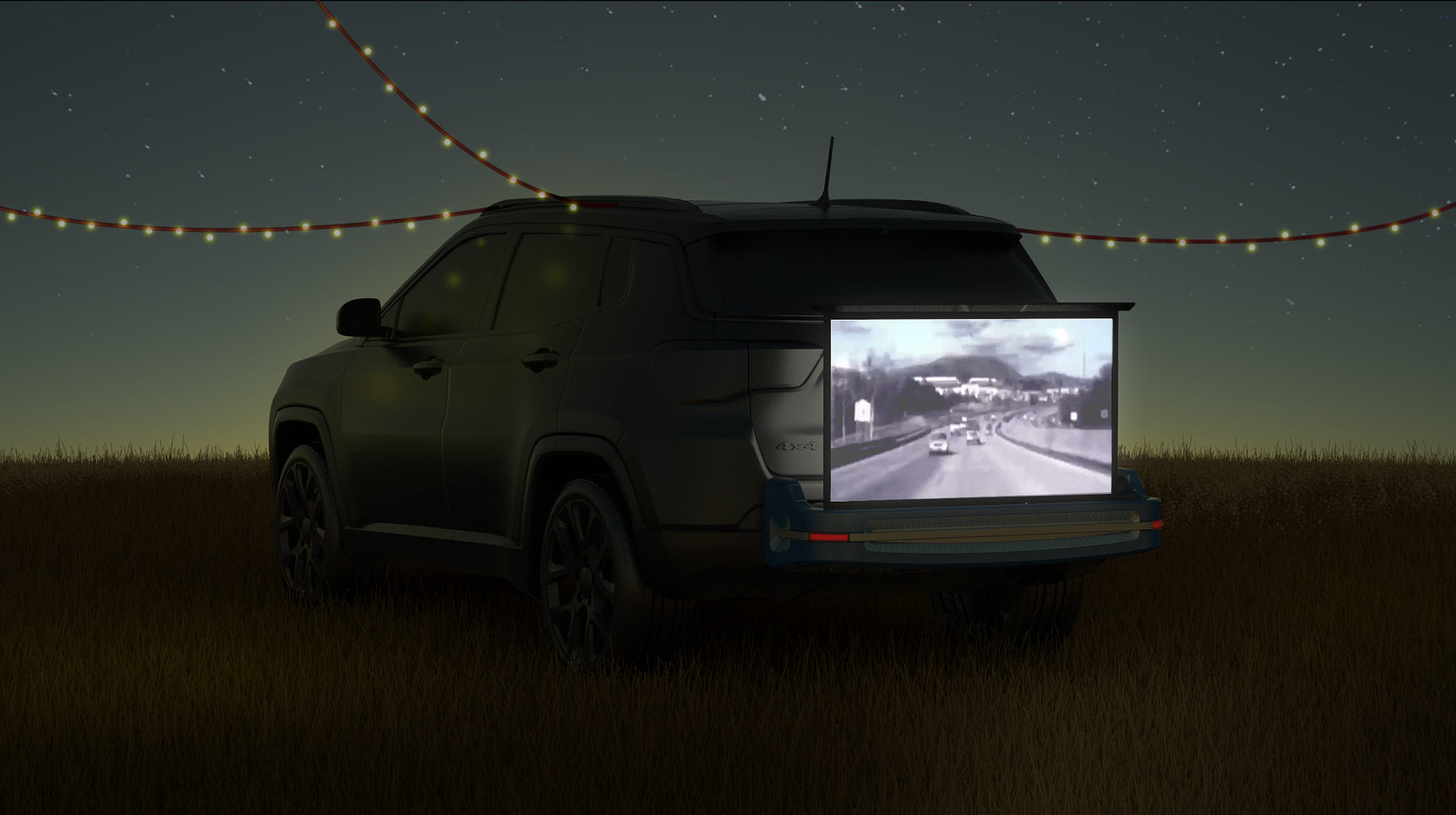

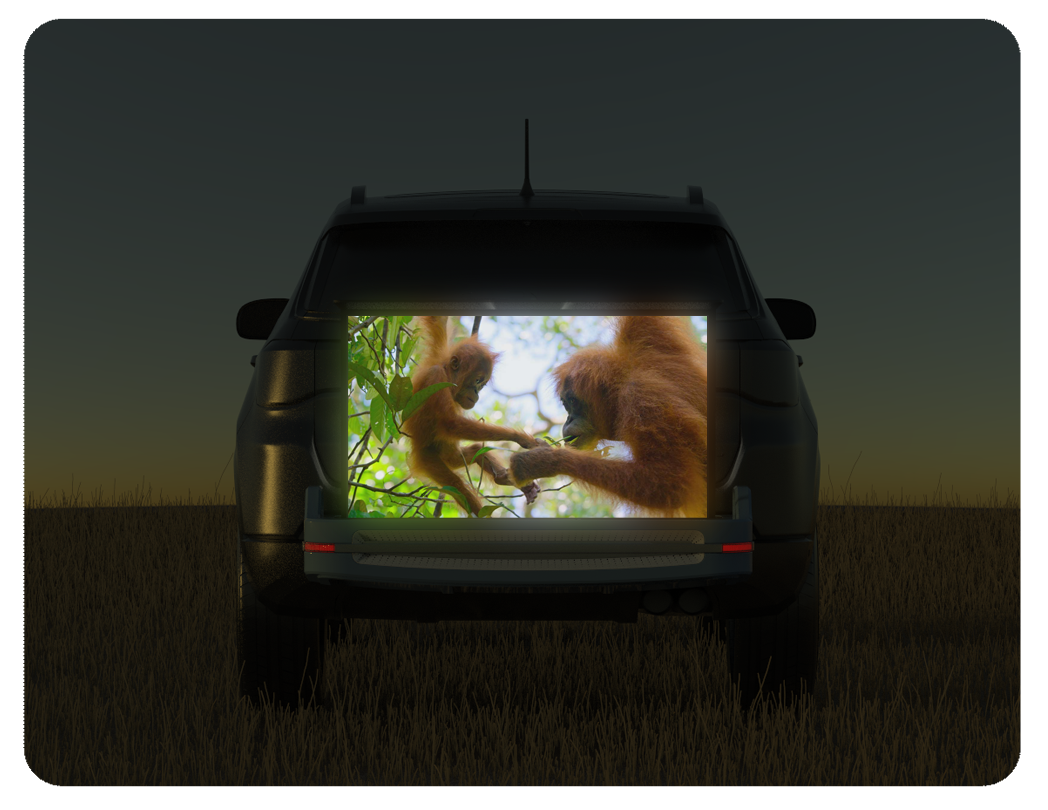

Introducing Hitchbox, it’s a smart media accessory that plugs into the back of your vehicle, and it's designed to support social and outgoing lifestyle of Alex.
It packs an array of speakers, a short-throw projector, and a roll-up screen.
It packs an array of speakers, a short-throw projector, and a roll-up screen.

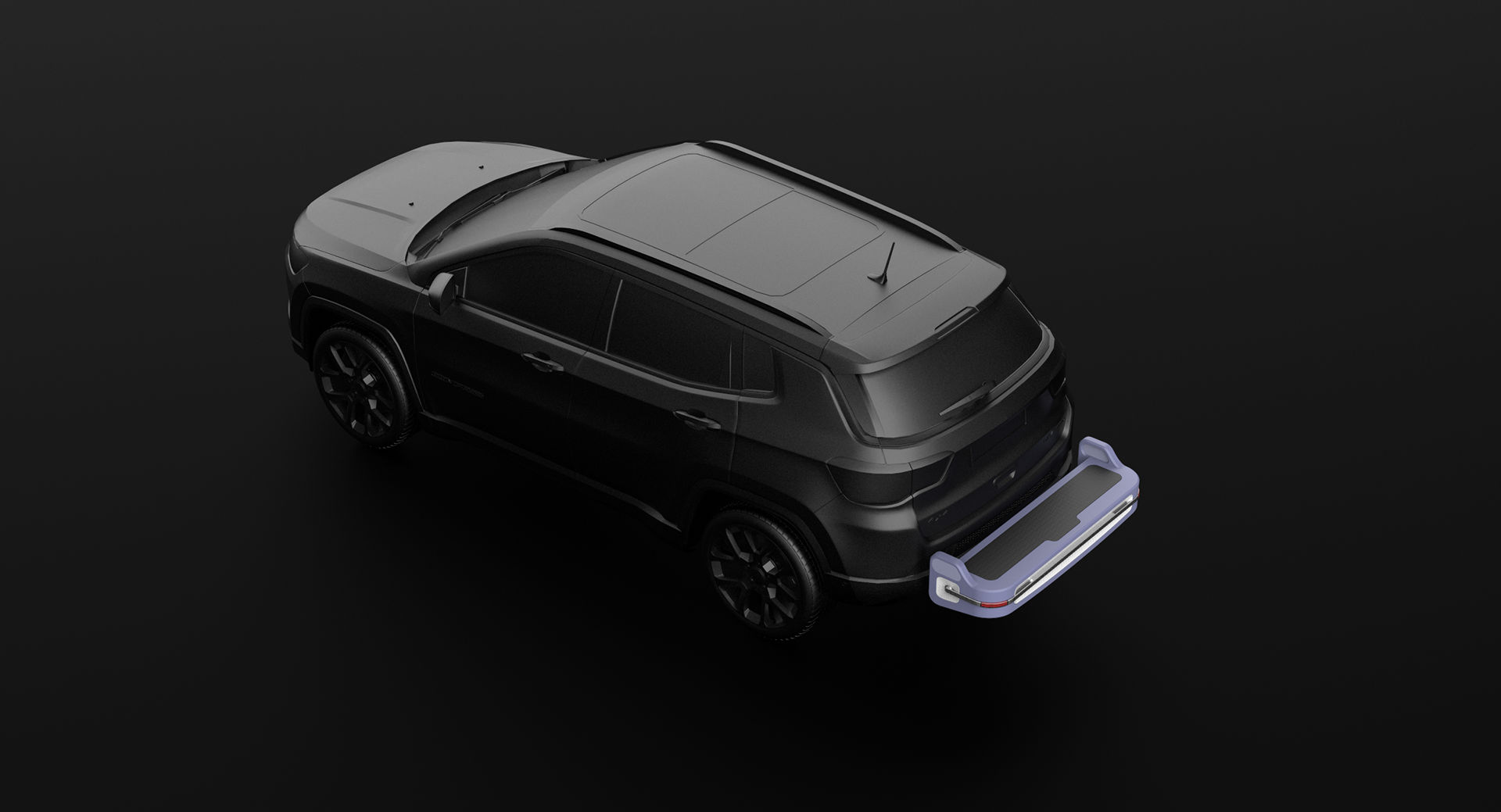

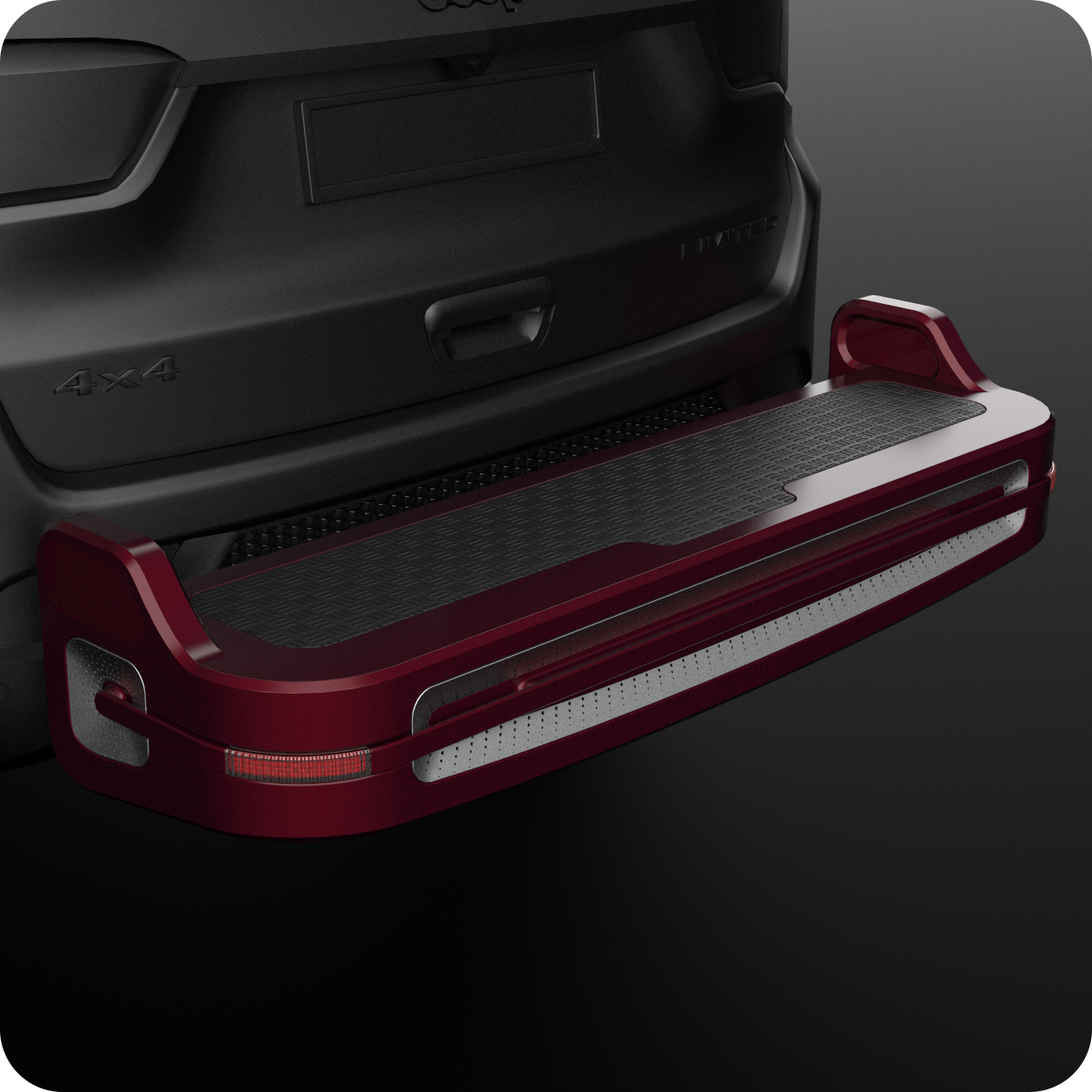

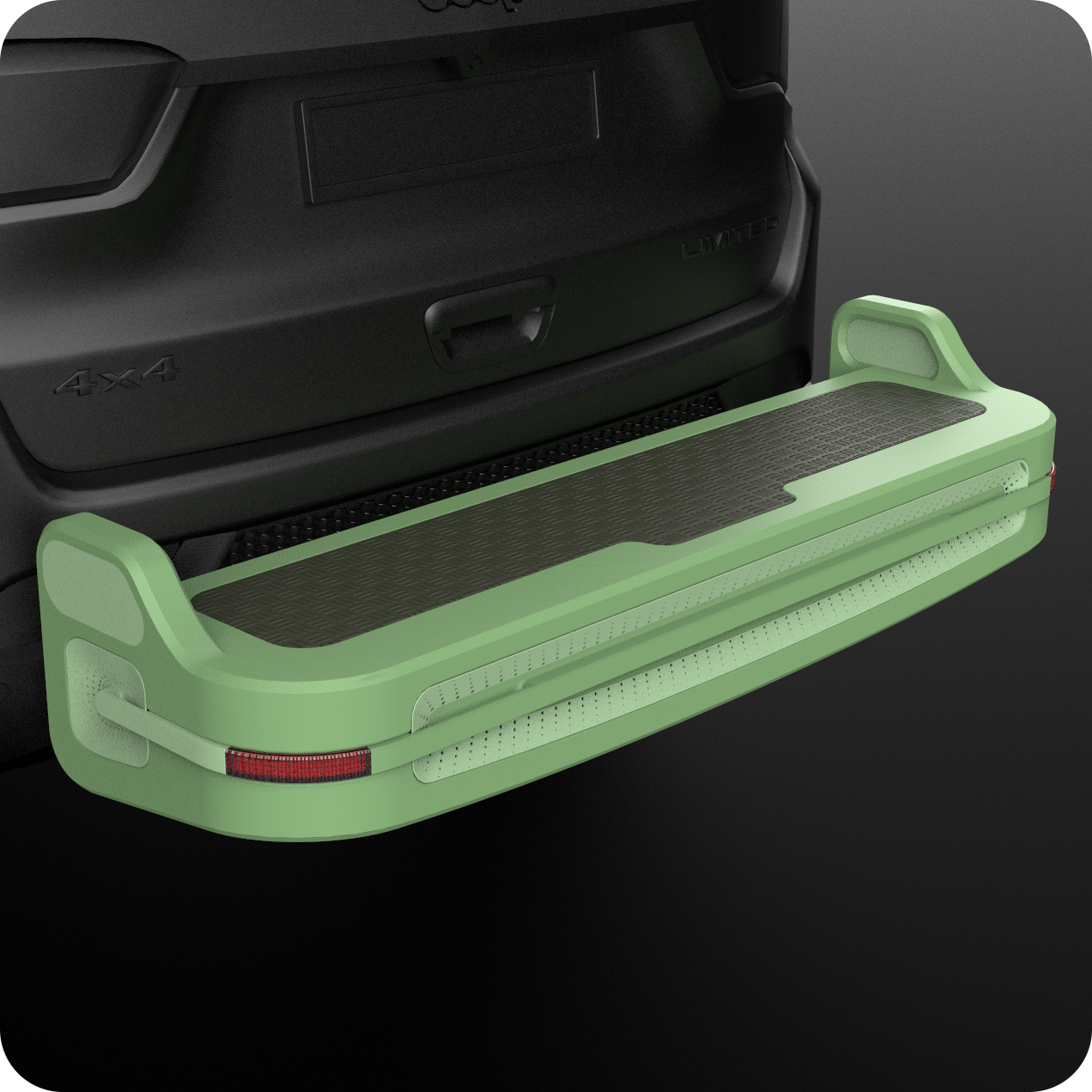

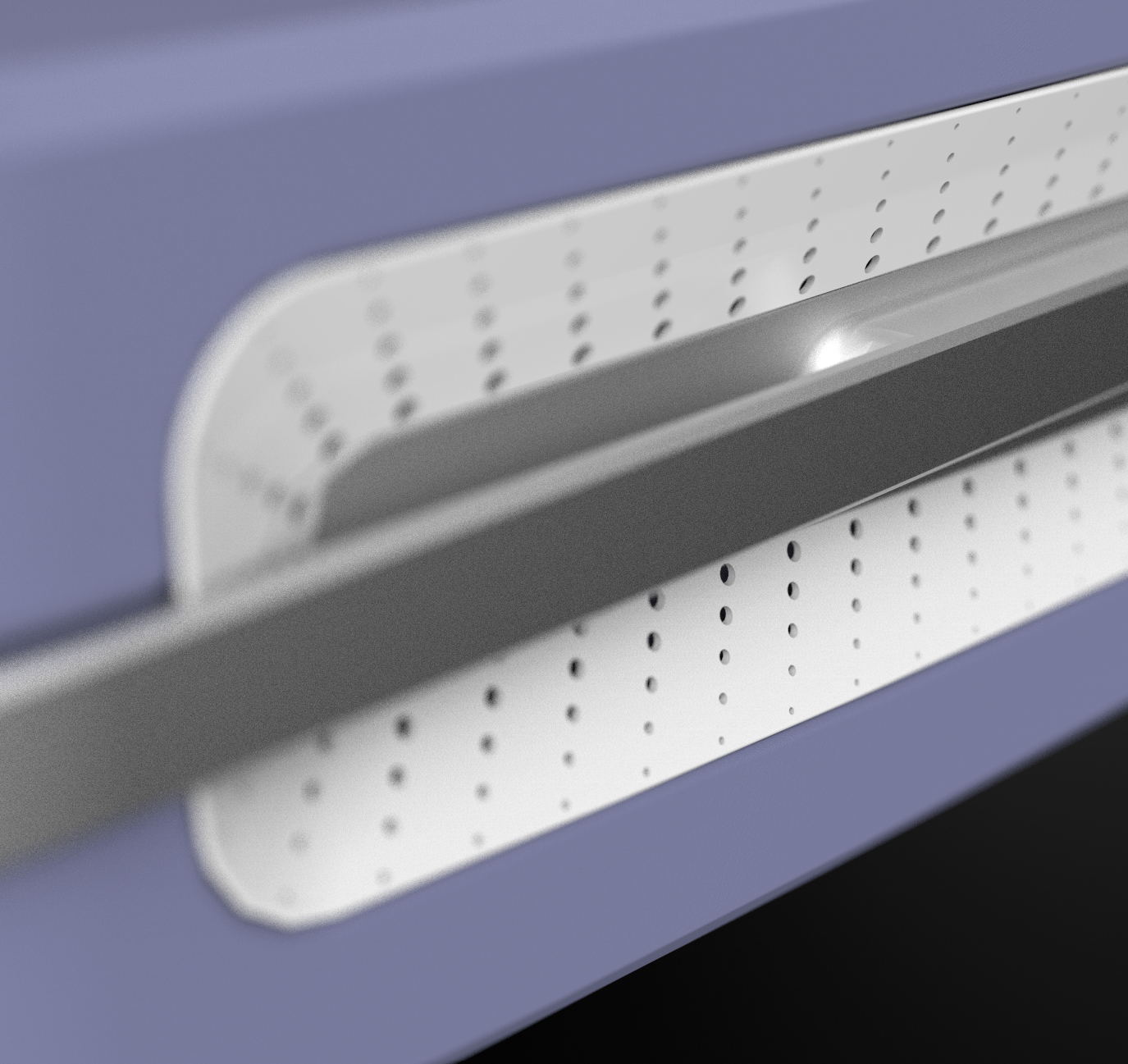

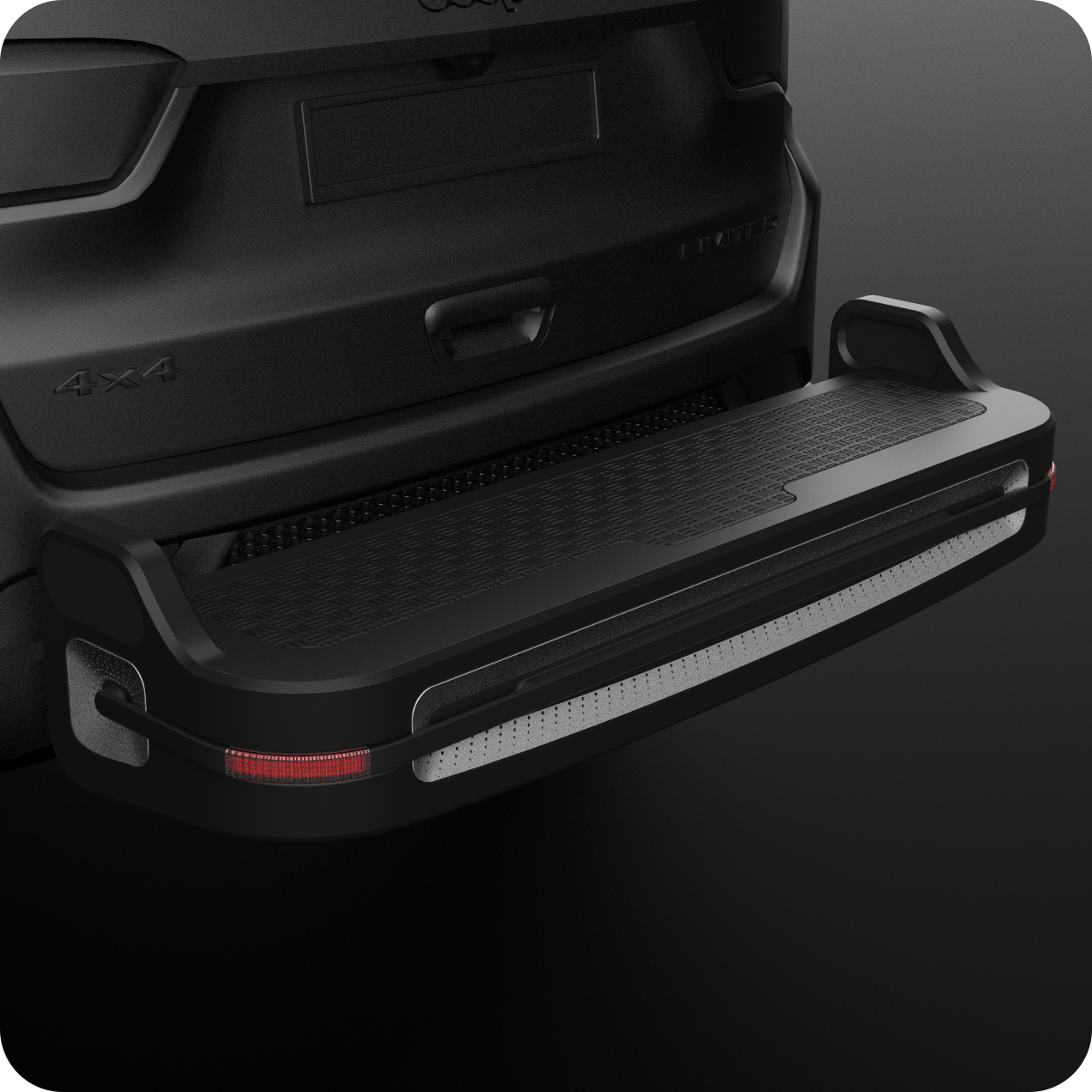

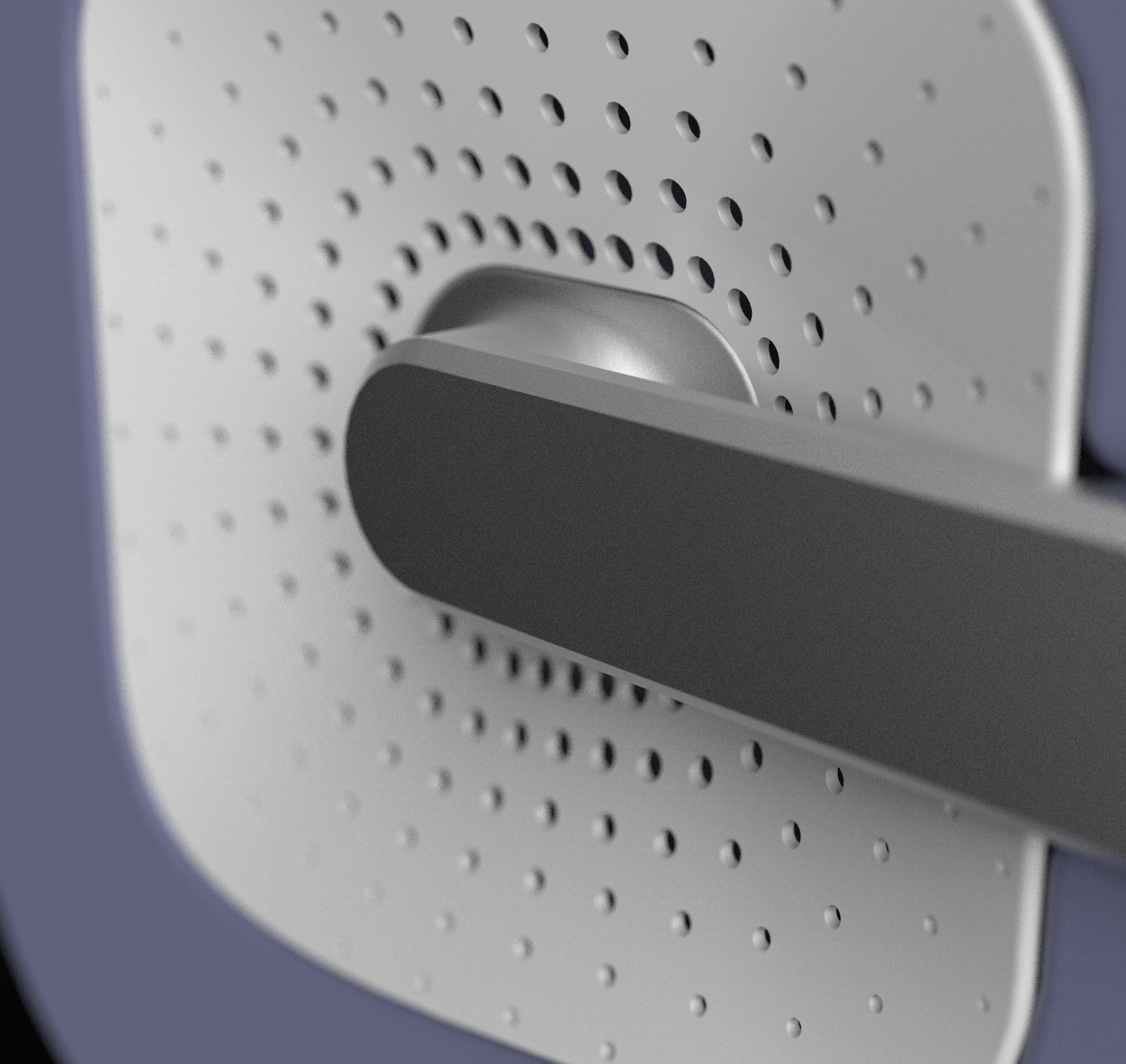

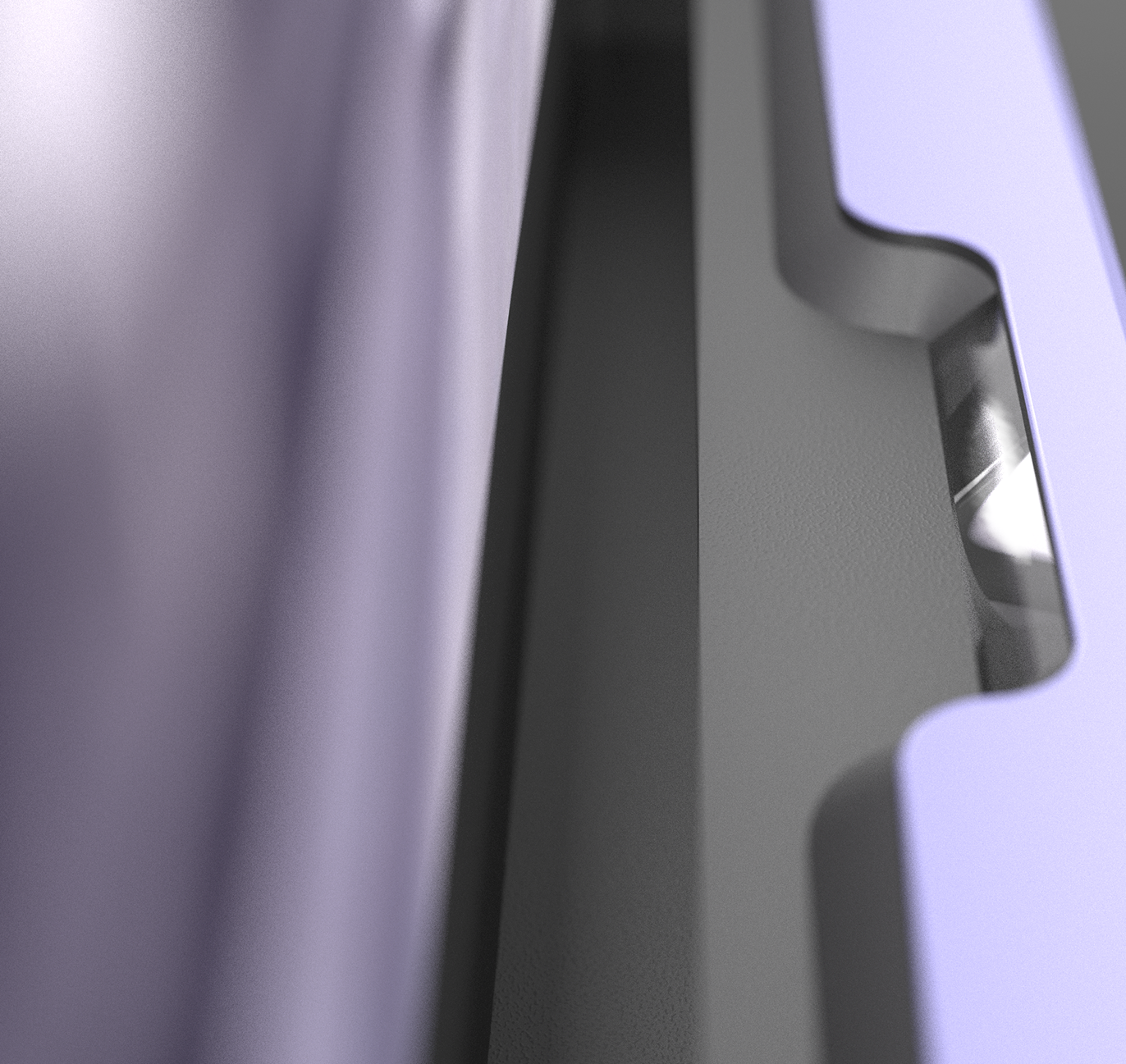

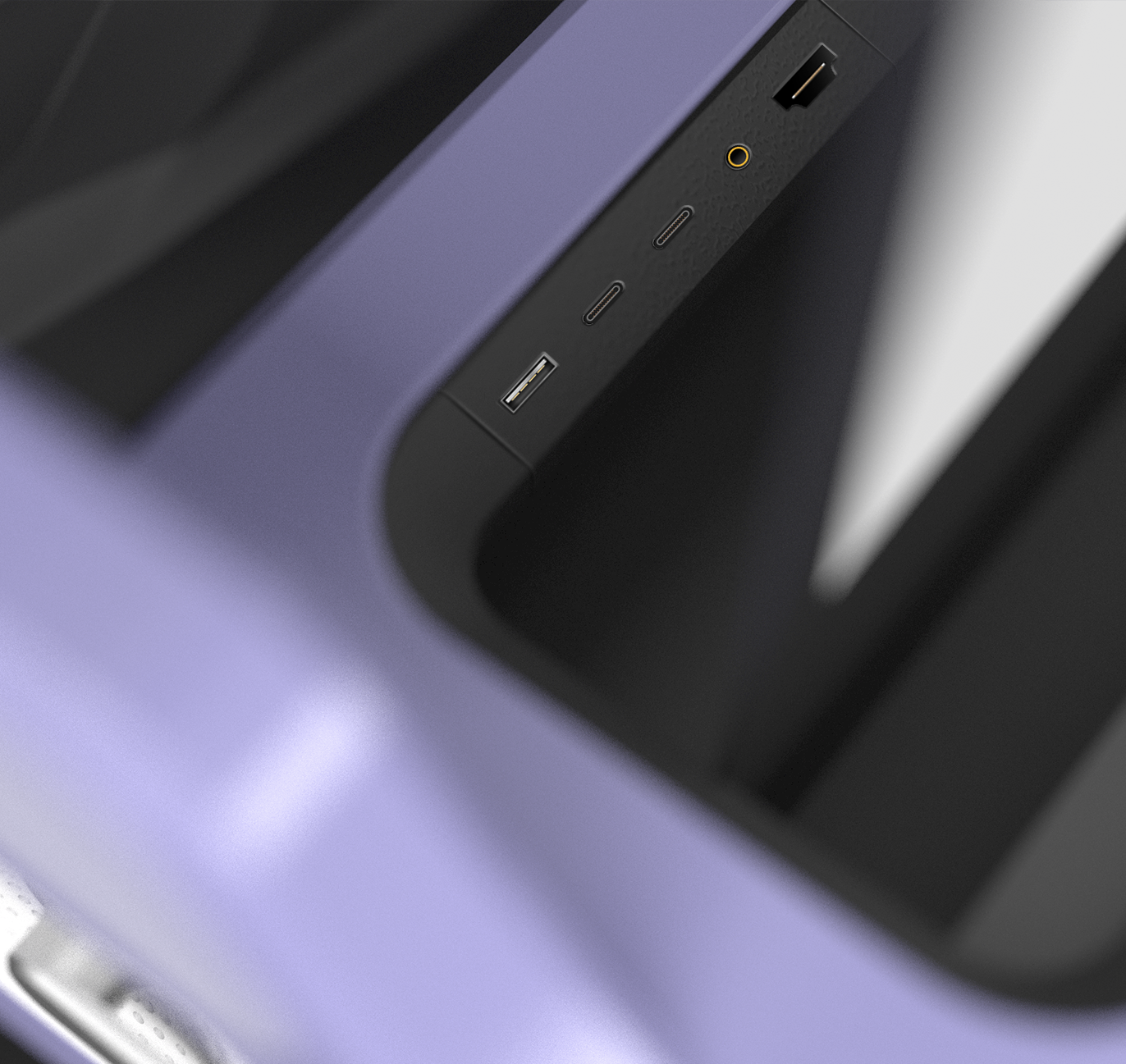

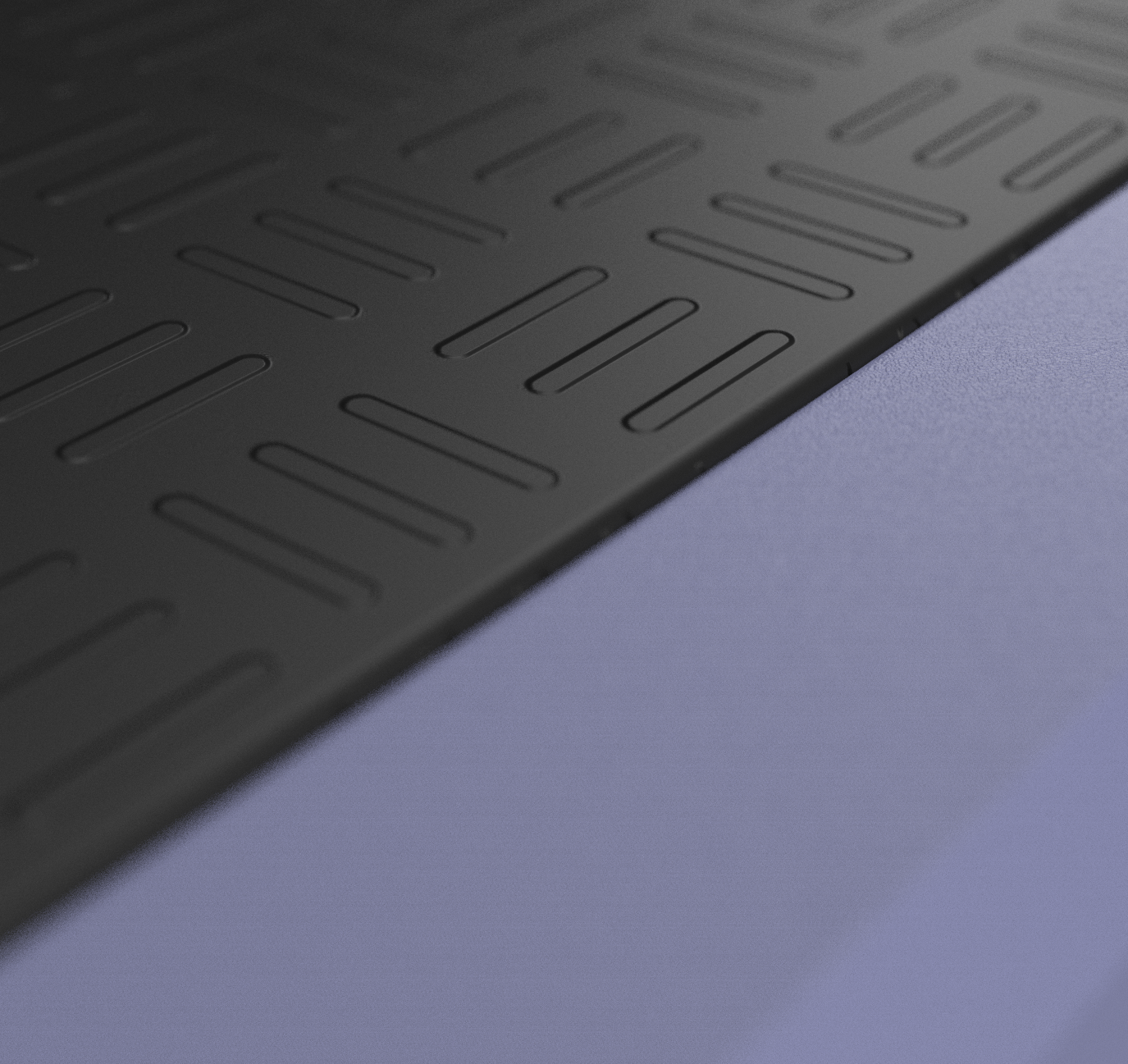

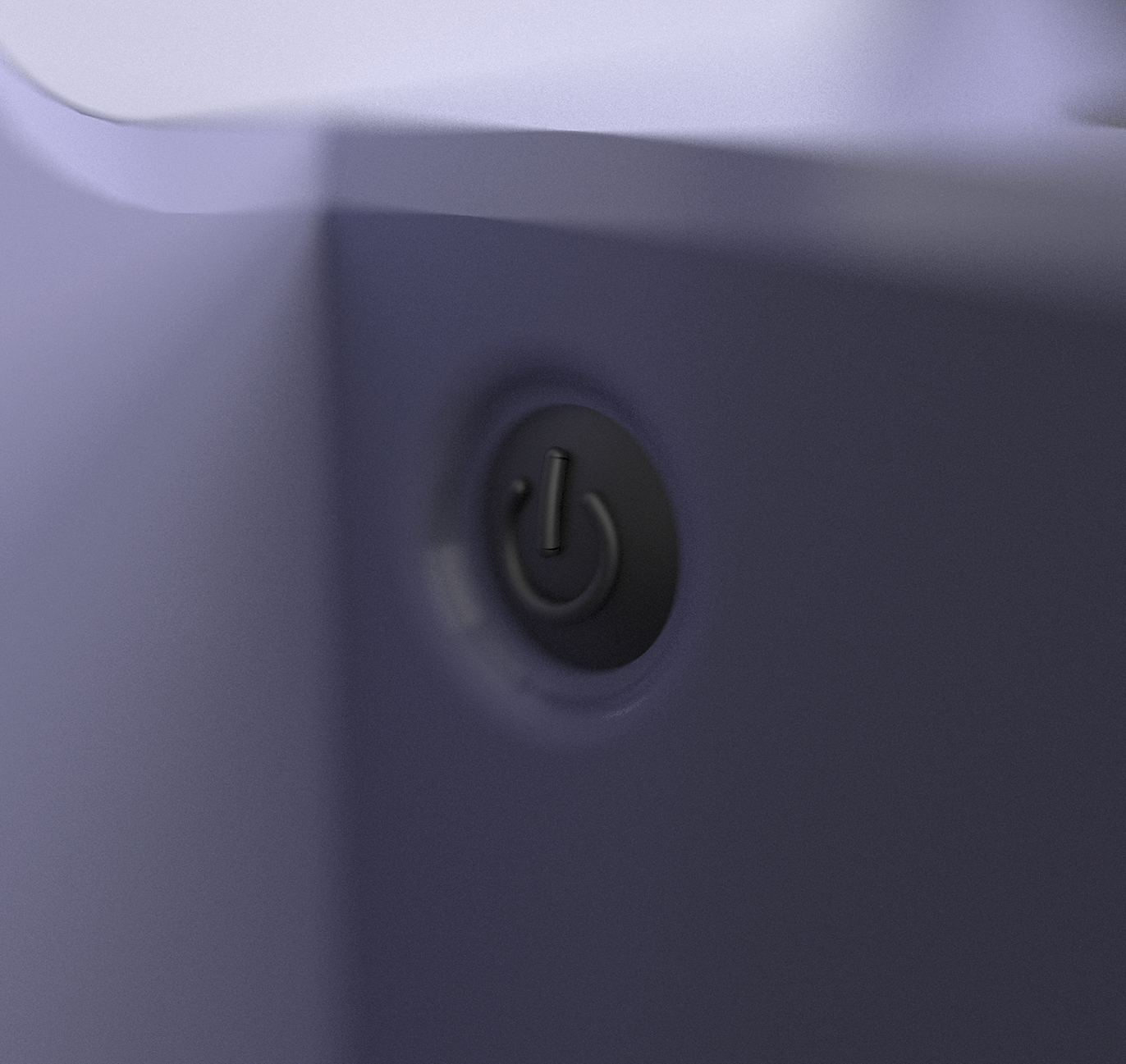

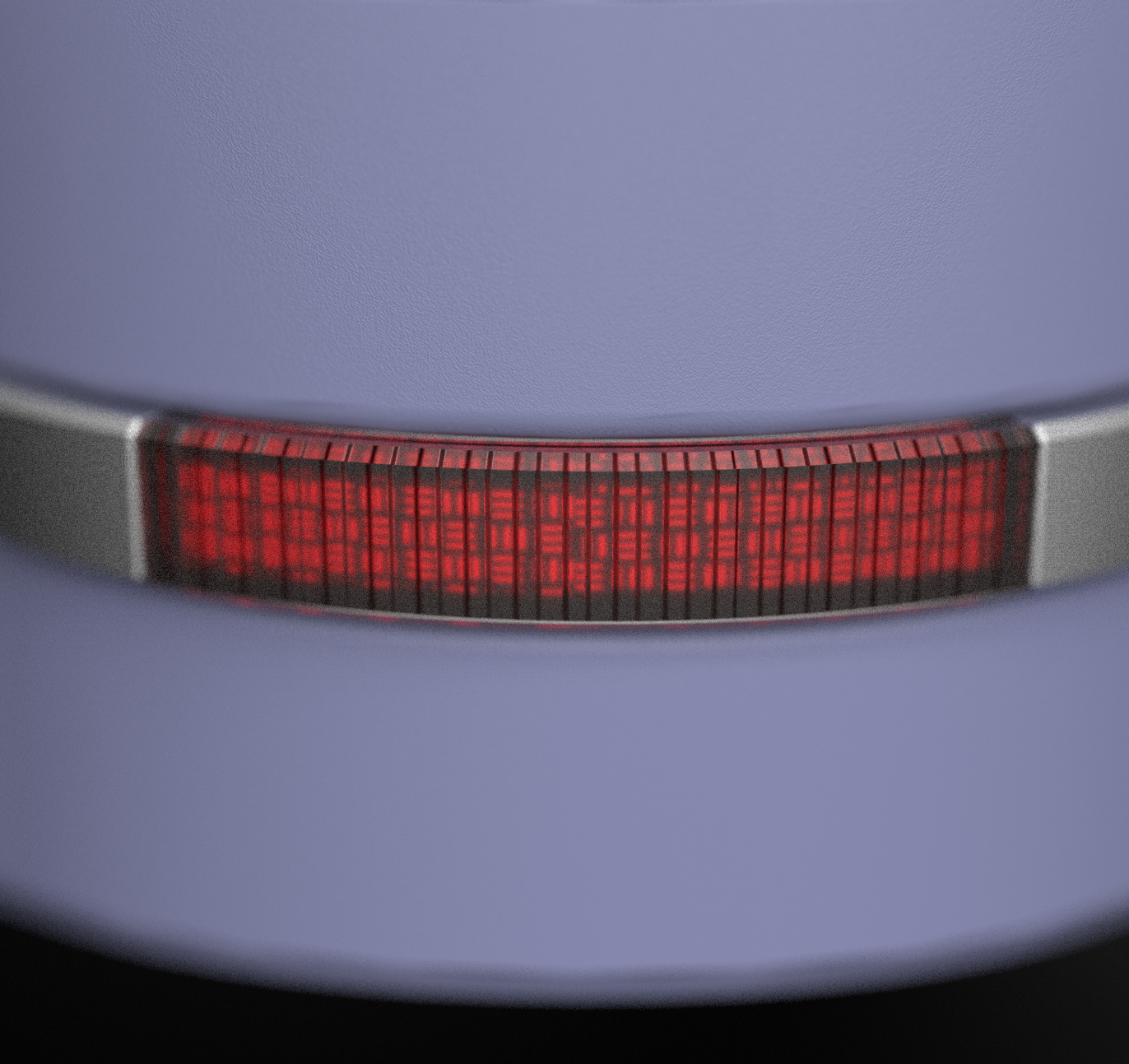

The design of the product draws inspiration from automotive aesthetics, seamlessly blending with any car. It harmoniously incorporates grille patterns and sleek lines, on the sheet metal. The side wings not only enhance its appearance but also contribute to its aerodynamic performance by facilitating smooth airflow along the sides.
With the mobile app, you can deploy the projector screen, play music over the speakers and use it for remote audio/video control
NEXT CHALLENGE AND KEY QUESTIONS TO EXPLORE
HMW interact with Hitchbox?
•Mobile vs Watch vs Tablet
•Center stack via CAN Bus
•Dedicated hardware remote
What are the different functions?
What are the different connectivity options?
What are the different connectivity options?
A LOOK AT WHAT'S OUT THERE
KEY LEARNINGS
Ecosystem Accessibility
Users appreciate having their entire app and content ecosystem easily accessible through the remote app.
Enhancing Hardware Experience
Hardware's tactile appeal is well-received; enhancing it with dynamic media options enhances user satisfaction.
Connectivity for Seamlessness
Ensuring multiple connectivity options is crucial for maintaining a seamless user experience.
After digging deeper into this area I concluded that a rich dynamic remote should be the basis of this experience and it will act as a differentiator in the market. I set the foundational principles of the product to be Familiar, Fast, Delightful, Intelligent, and Context-aware.
01 — Enable users to get information and content within the remote for engagement
02 — Enable users to perform the majority of all behaviors within the remote itself

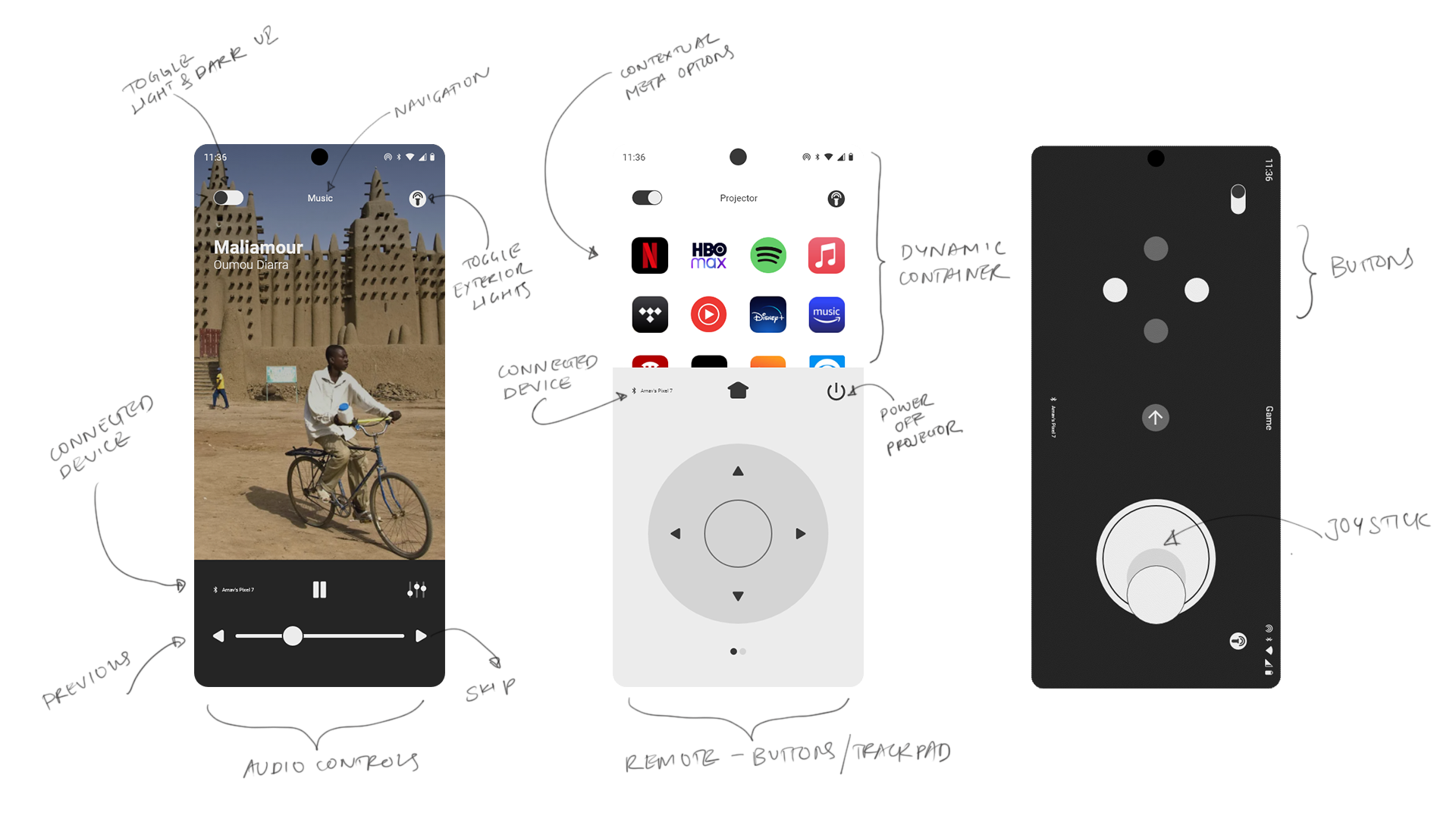

The main challenge in designing this app was ensuring seamless functionality across three different modes: Music, Projector/Movie, and Game. The app needed to adapt its interface dynamically to each mode and synchronize with the selected content. To address this challenge, I implemented three distinct UIs that could dynamically adjust their elements based on the type of content being played.

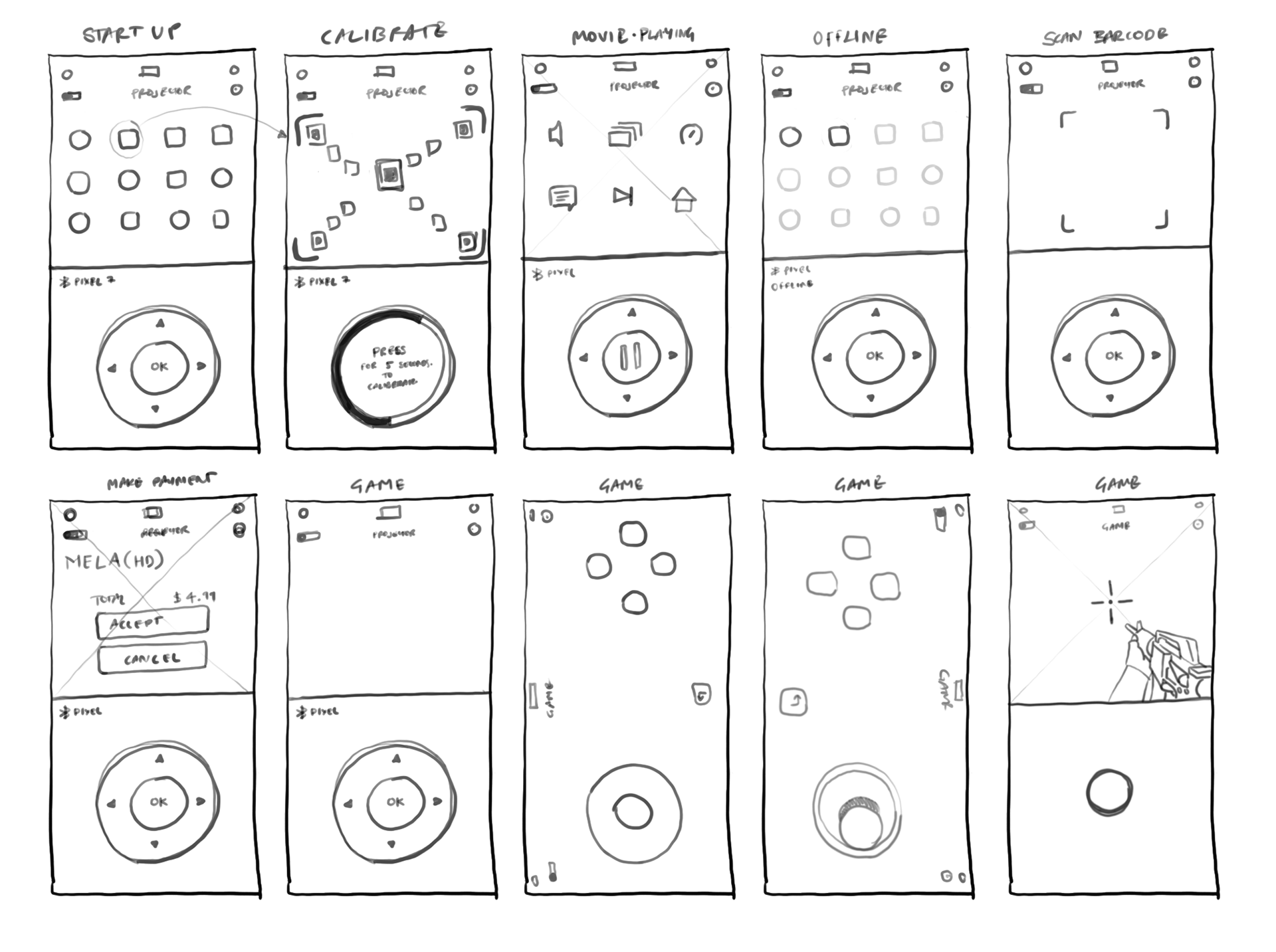

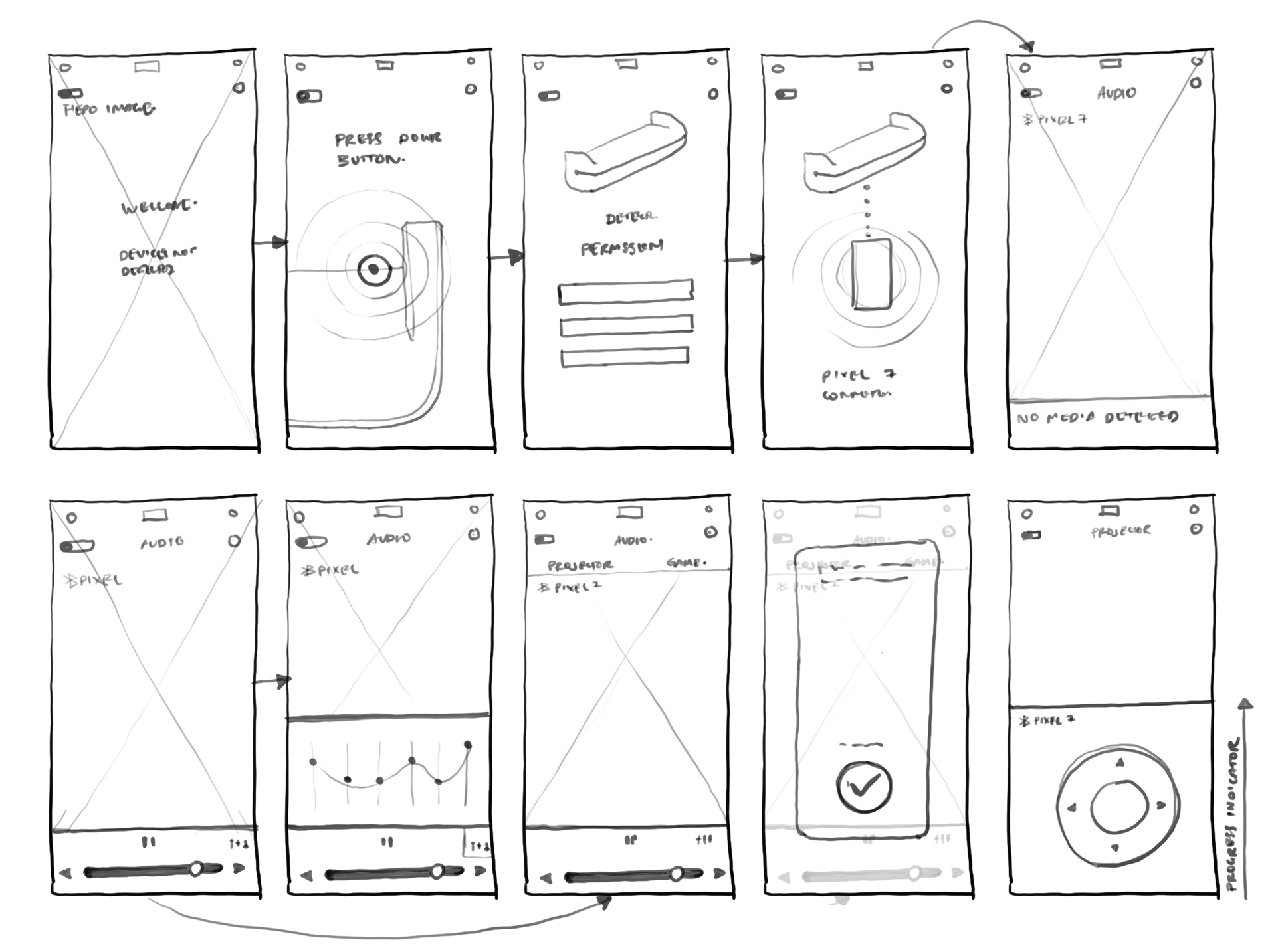

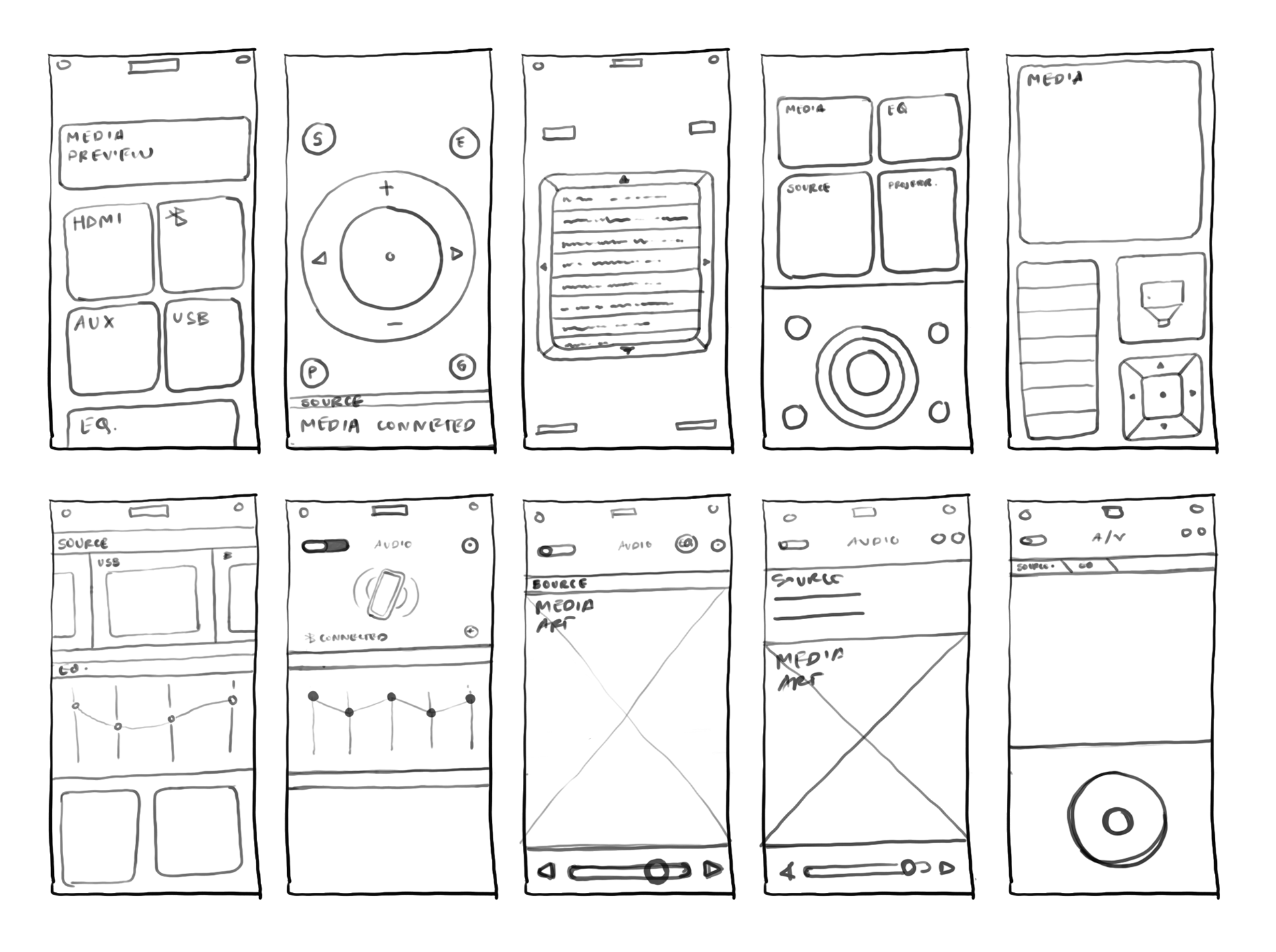

SKETCHING FLOWS
Feature walkthrough
Setup

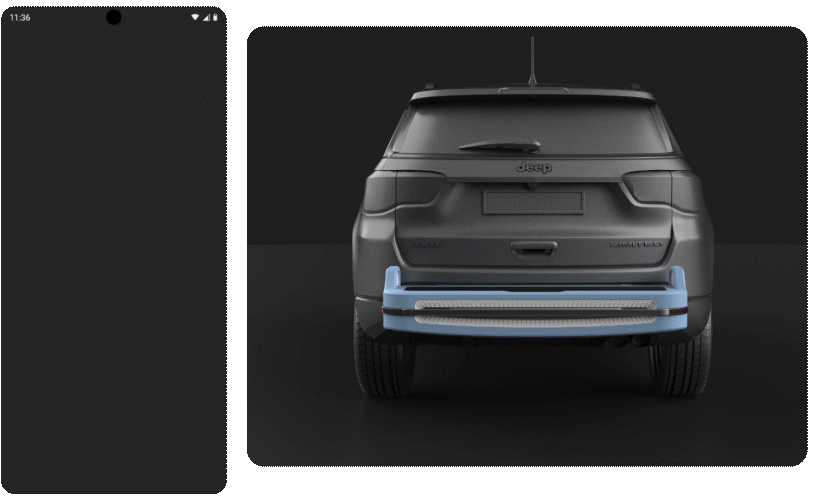

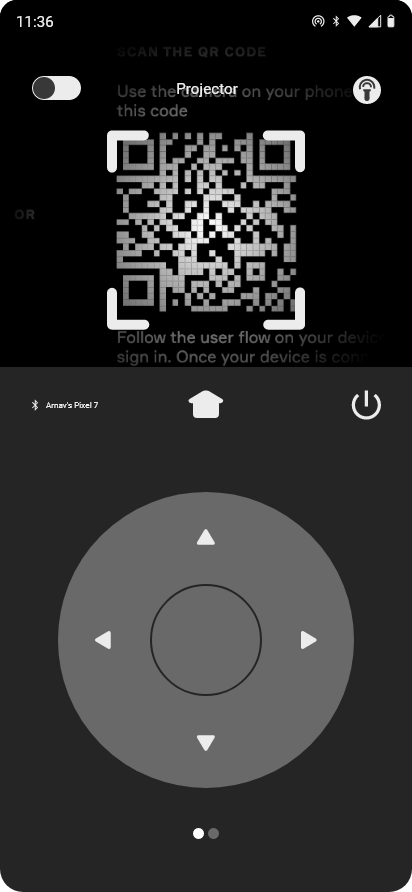

Upon opening the app, the phone automatically scans for HitchBox. If a connection is not found, the app prompts the user to power it on. Once the device is detected, the phone initiates pairing and establishes a connection. Both the phone and HitchBox utilize Wi-Fi and Bluetooth for seamless data sharing. HitchBox is equipped with onboard Wi-Fi and connects to the phone's hotspot for connectivity.
Quick access area lighting
The light toggle switch is conveniently located on top. This button can be accessed in any mode. It is crucial to have excellent area lighting, especially in a dark campsite where visibility is critical for safety and comfort. By providing easy control over the lighting, the switch ensures that campers can quickly and conveniently illuminate their surroundings
MUSIC MODE
Music playback

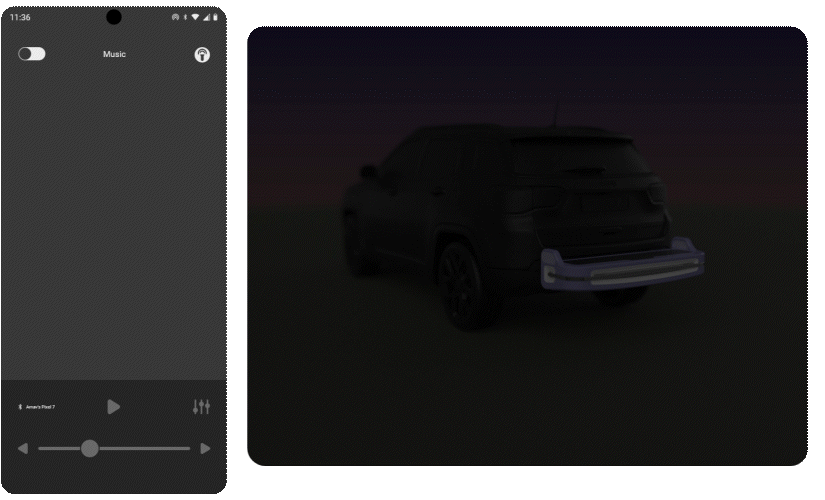

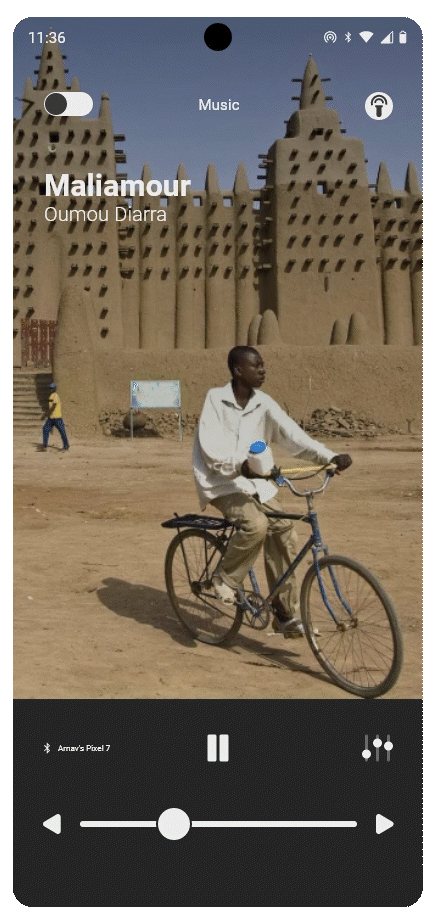

HitchBox also serves as a wireless speaker, allowing users to enjoy music without deploying the projector screen. The app offers basic music playback functionality, as users may prefer to use their preferred music app for playback. The app includes features such as volume control, track skipping, and an equalizer for customization.
Quick toggle - light and dark themes
One of the primary use cases for HitchBox is entertainment during camping trips, where the device is utilized in various lighting conditions within the environment. To ensure user comfort and readability, the app incorporates a convenient light-dark theme toggle. This feature allows users to easily switch between light and dark themes, making it easier on the eyes and ensuring optimal readability in different lighting scenarios
MOVIE MODE
Projector setup

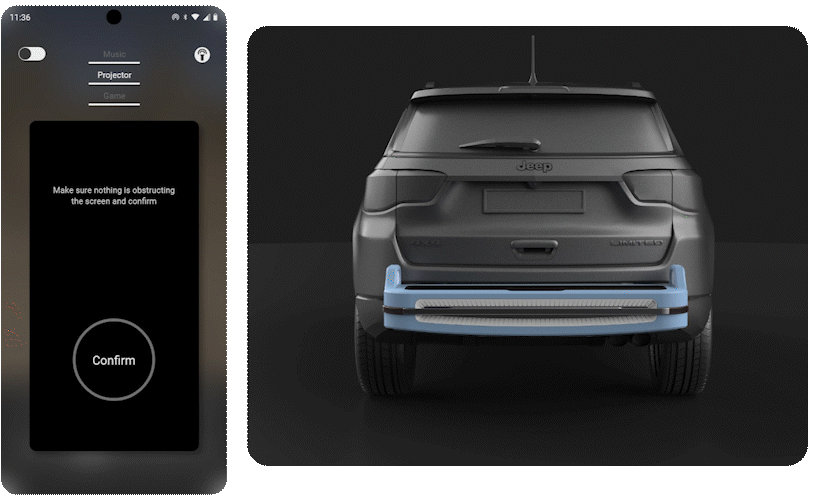

When switching to movie mode, the app prompts the user to deploy the projector. However, before initiating the deployment, the app performs a quick check to ensure that there are no obstructions in the way of the screen. Once the projector screen is fully deployed, the app seamlessly transitions into a remote control interface for controlling the movie playback

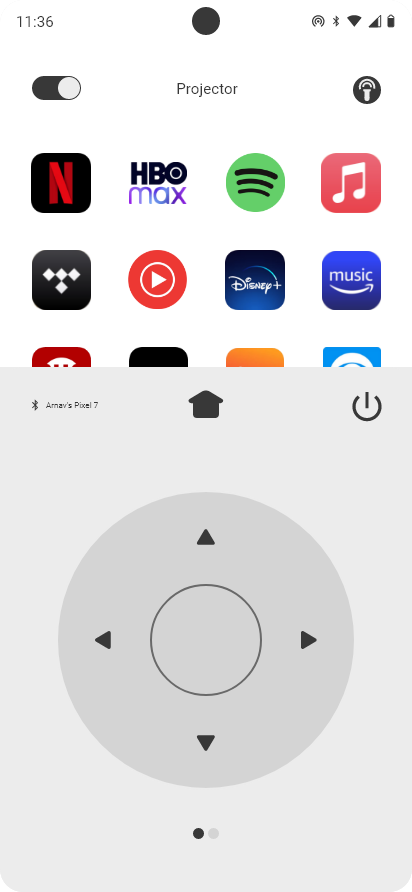

Remote control

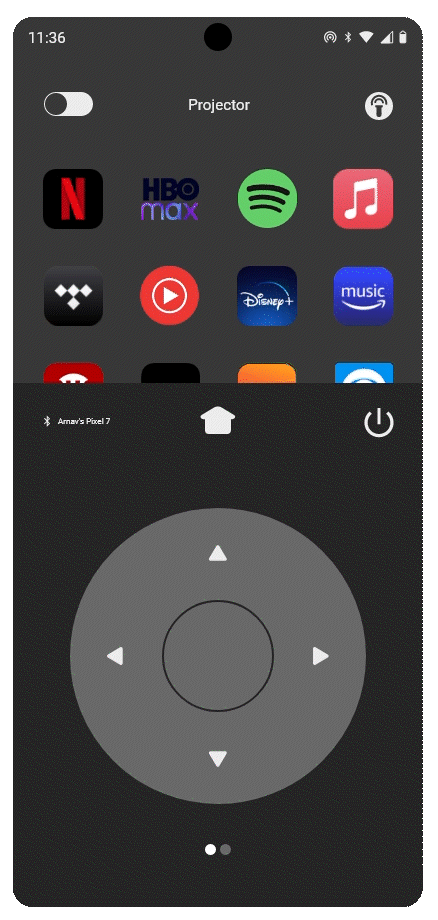

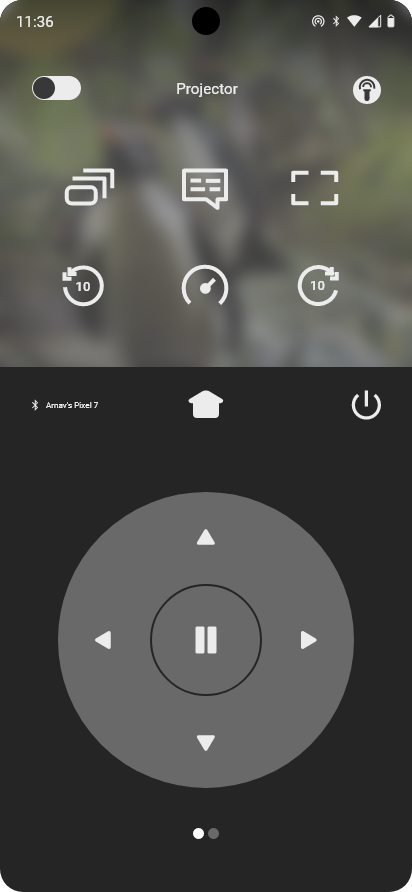

The remote control interface in the app is divided into two sections. The lower half consists of a static input interface, while the upper half serves as a dynamic, active container. The dynamic container displays contextual inputs that change based on the content being played and the current mode.
Users can swipe the circle on the interface to switch between button inputs and a touchpad. This provides flexibility and convenience in navigating and interacting with the app based on user preferences and the specific requirements of the content and mode.
Transition from touch pad to button pad
USE CASES
Keystone correction

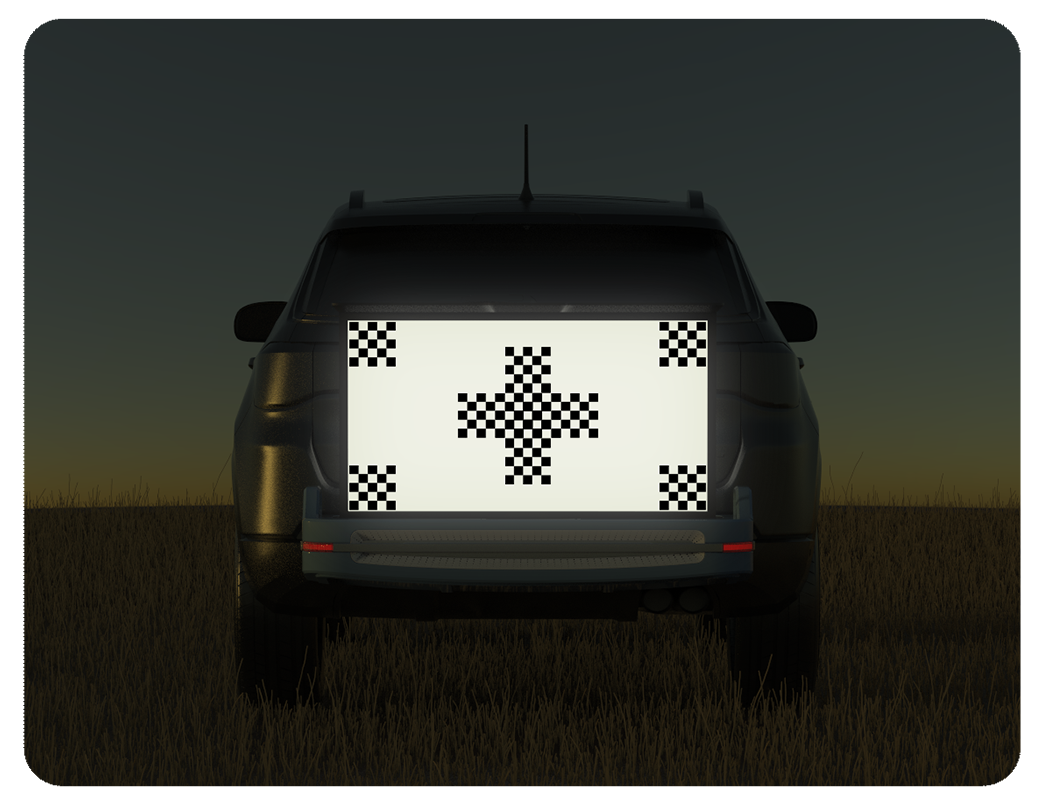

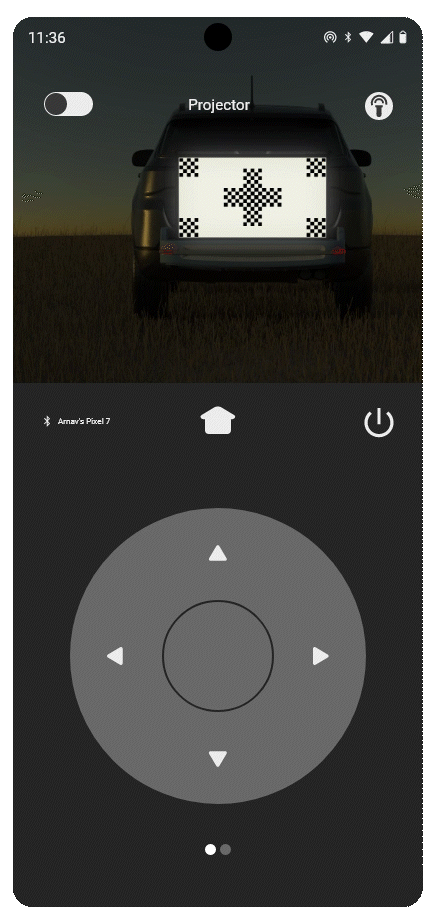

HitchBox utilizes the phone's onboard camera as a visual guide for automatic keystone calibration. To achieve this, the device projects a specific pattern onto the screen, which the phone's camera captures and relays to HitchBox for calibration.
Sign-in to a New App
With HitchBox, users can conveniently sign into a new app directly from the remote itself, eliminating the need to switch between the camera and the remote app. When the sign-in screen appears on the TV, the dynamic container in the app automatically opens up the camera. This seamless integration allows users to effortlessly capture their login credentials or perform any required scanning directly from the remote, streamlining the sign-in process.

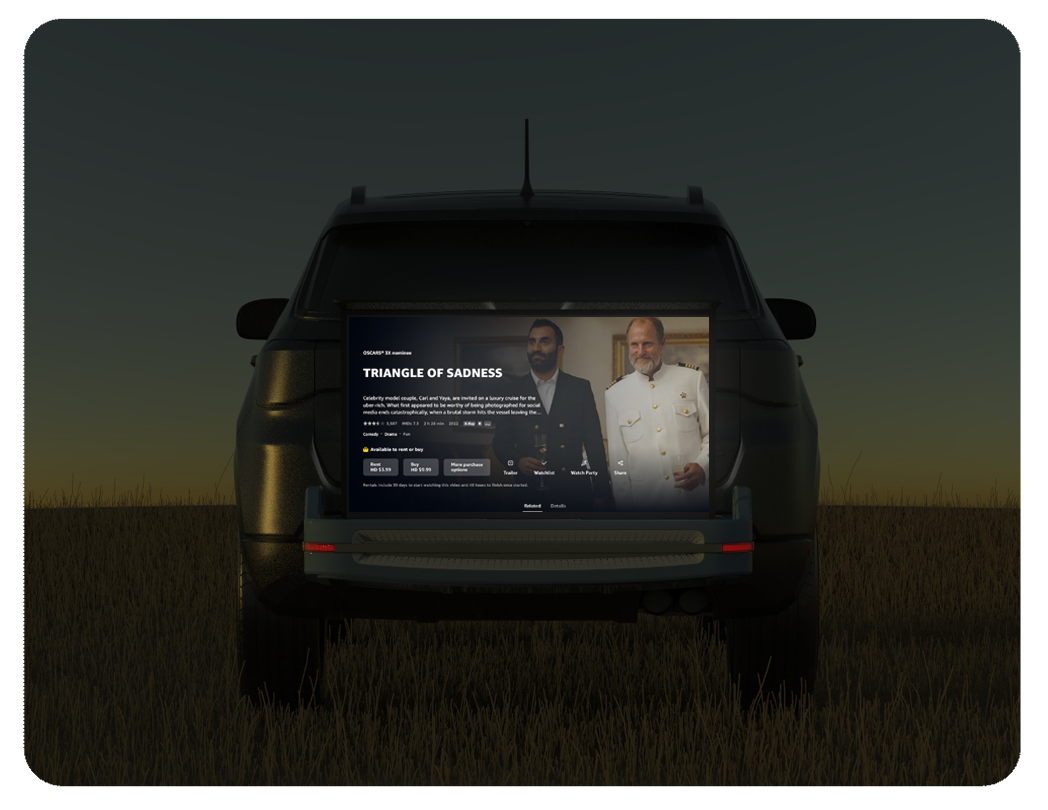

Buy/Rent movies with one tap
HitchBox offers a seamless experience for renting or buying movies. When the rental screen appears on the TV, the dynamic container in the app automatically provides a hyperlink to the purchasing page on the platform. This means users don't have to leave the remote app to initiate the rental or purchase process. By eliminating the need for additional navigation steps, HitchBox simplifies the movie rental experience and allows users to seamlessly rent or buy movies directly from the remote interface
Contextual options
While streaming a movie on Netflix using HitchBox, the dynamic container in the app displays sub-options offered by the Netflix platform. This feature ensures a seamless and immersive movie-watching experience by allowing users to access important options without interrupting their immersion in the movie.
GAME MODE

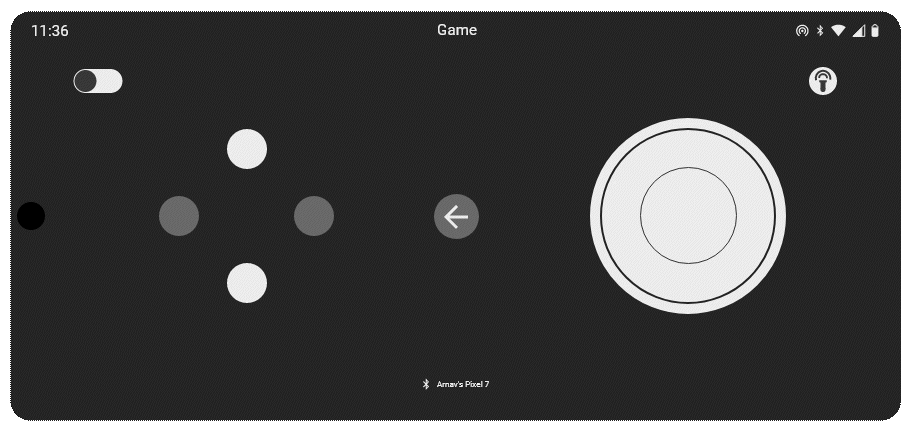

HitchBox offers the ability to play simple games as well. Switching to the game mode on HitchBox transforms the remote controller into a gamepad, featuring a joystick and four buttons. This allows users to enjoy simple and intuitive gaming experiences without the need for additional controllers

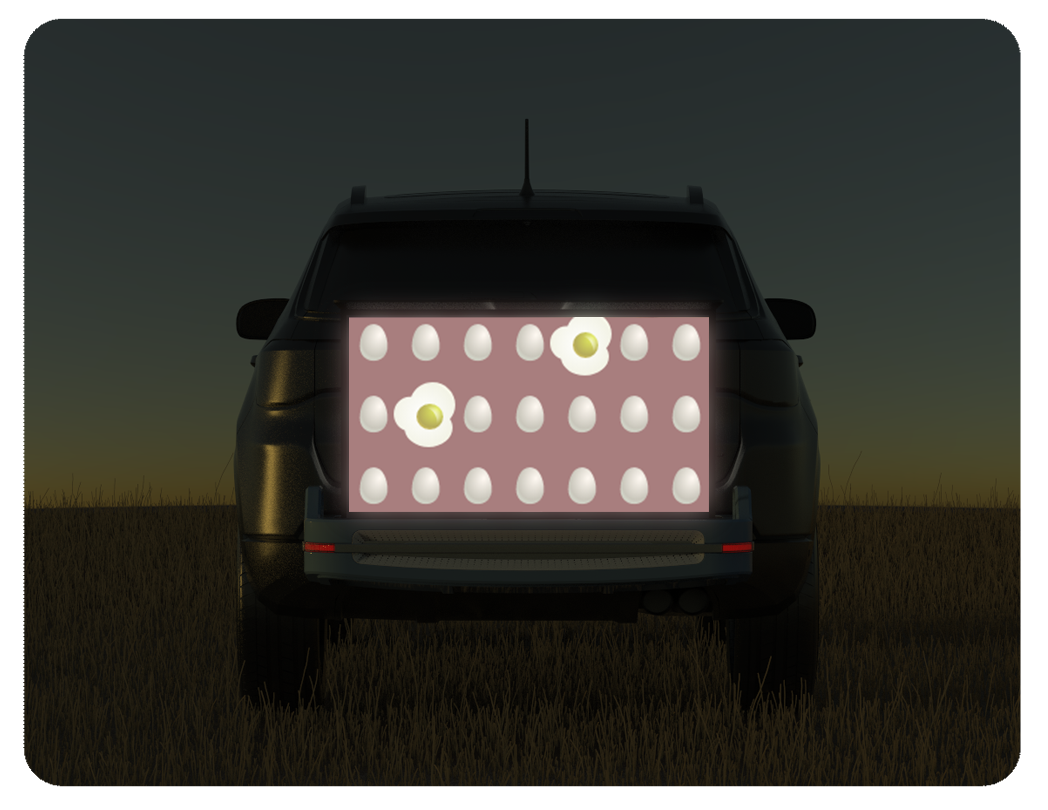

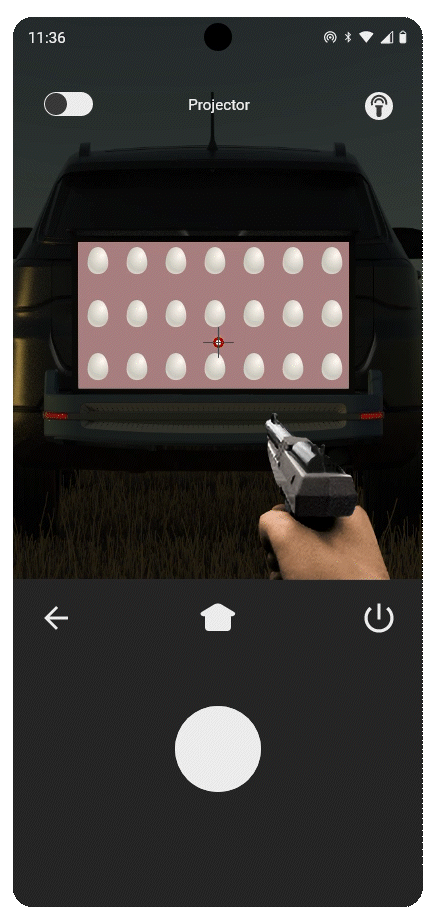

In addition to a conventional gamepad, HitchBox offers the flexibility of utilizing the dynamic container as an augmented reality (AR) interface for gaming. This feature is particularly useful for first-person shooting games, where the dynamic container serves as an intuitive and immersive interface. By leveraging AR technology, users can enjoy a unique gaming experience that combines real-world movements and virtual interactions.
In summary, the HitchBox concept presents an integrated approach to entertainment. It seamlessly combines music playback, projector/movie mode, and gaming, while offering features such as keystone calibration and sign-in functionality. This design concept highlights the potential for a unified user interface that caters to various entertainment modes, enhancing convenience for users
